Evaporative Emissions Testing Subaru

Evaporative Emissions Testing Subaru:

A major component of the Subaru OBD-II system is the system’s ability to monitor the evaporative emissions system. Today’s vehicles are producing very low emissions from the tailpipe, so it has become increasingly important to monitor and contain emissions from other vehicle sources.

Evaporative Emissions Testing Subaru: A major component of the Subaru OBD-II system is the system’s ability to monitor the evaporative emissions system.
Evaporative Emissions Testing Subaru: A major component of the Subaru OBD-II system is the system’s ability to monitor the evaporative emissions system.

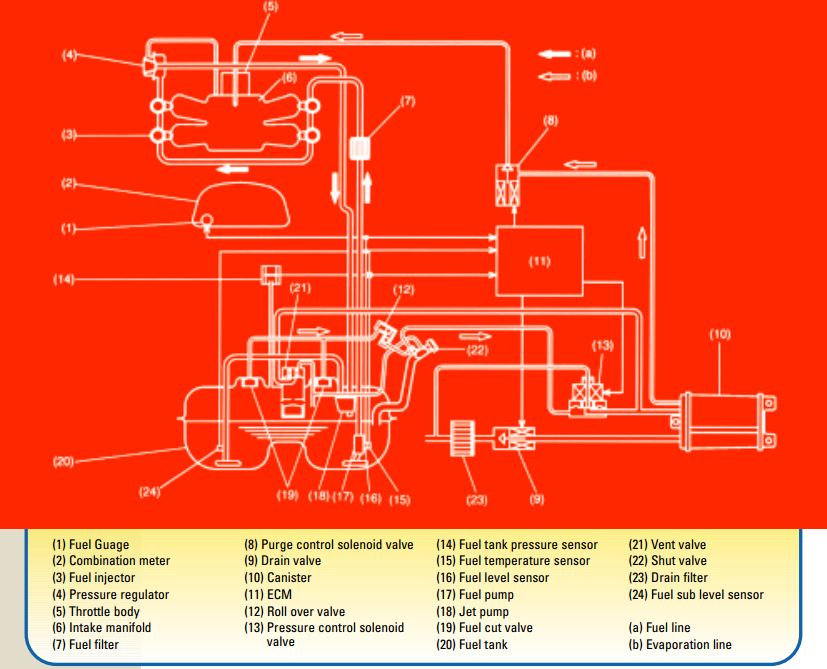

A potentially large source of emissions is the vehicle’s fuel system. If not properly contained, vapors escaping from the fuel tank could produce a larger quantity of harmful emissions while the vehicle was standing still than what would be emitted via the tailpipe when the engine was running and the vehicle was driving down the road.

The Subaru OBD-II system monitors the evaporative emissions system by drawing the system to a negative pressure. If the system holds vacuum, it passes the test. If the system fails to hold vacuum for the prescribed period, it fails and a diagnostic trouble code (DTC) P04440 is stored in the ECM memory. The malfunction indicator light (MIL) also comes on in the dash to alert the driver to the problem.

The charts that follow were collected through the data link connector using the New Select Monitor (NSM), during the diagnosis of a DTC P0440 on a 1997 Subaru Legacy 2.5 liter. We’ll begin with a description of system operation under normal operating conditions.

Pages: 1 2 3
2.5RS, Drivetrain, Ej20, ej20G, EJ25, EJ257, forester, gc8, Impreza, Legacy, Old School Subaru, STi, Subaru, USDM, WRX

Knock Sensor diagnosis for Subaru

Knock Sensor diagnosis for Subaru:

This is a simple overview on diagnosing knock sensor issues with your Subaru Impreza/Forester/Legacy/Etc.

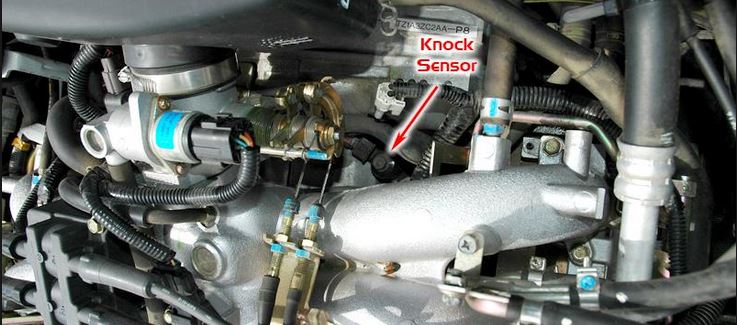

The knock sensor is designed to sense knocking signals from each cylinder. The knock sensor is a piezo-electric type element which converts knocking vibrations into electrical signals.
The knock sensor is designed to sense knocking signals from each cylinder. The knock sensor is a piezo-electric type element which converts knocking vibrations into electrical signals.

The knock sensor is designed to sense knocking signals from each cylinder. The knock sensor is a piezo-electric type element which converts knocking vibrations into electrical signals. The electrical signal is sent to the ECM, which changes the ignition timing to reduce the engine knock or ping. For this system to work correctly, the knock sensor must first hear the engine ping. The driver of the vehicle may also hear a small engine ping. A delay of approximately 1-2 seconds is normal, depending on the fuel quality, engine load, air temp, etc. At this time, the ECM will retard the timing.

This function can be viewed on the Select Monitor RTRD mode. When the knock is eliminated, the timing is gradually advanced to the specified setting. If engine ping is heard again this process is repeated. This will continue until the knock sensor no longer hears the engine knock or ping.

Note: This is a normal operation of the knock sensor. Do not try to repair it.

The next page will discuss asking the right questions on diagnosing knock sensor failures.

Pages: 1 2
2.5RS, brembo, Drivetrain, forester, gc8, Impreza

Brake Fluid Flush Subaru:

Brake Fluid Flush Subaru:

This is a step by step guide on how to do a brake fluid flush on most Subaru cars. It’s often a good idea to do a brake fluid flush at least once a year to keep your Subaru’s braking system in good condition. This is even more important if you autocross or do track days with your car. Use a good performance brake fluid and not whatever is cheapest at Autozone. I have a strong preference towards ATE and Motul brake fluid. Good fluid combined with good brake pads like a Hawks or Carbotechs will give your Subaru great stopping power.

1.) Either jack-up the vehicle and place a rigid rack under it, or lift-up the vehicle.

2.) Remove all the wheels.

3.) Drain the brake fluid from master cylinder.

4.) Refill the reservoir tank with recommended brake fluid.

NOTE:

• Avoid mixing different brands of brake fluid to prevent degrading the quality of fluid.
• Be careful not to allow dirt or dust to get into the reservoir tank.
Air bleeding sequence (1) → (2) → (3) → (4)

Brake Fluid Flush Subaru: Air bleeding sequence (1) → (2) → (3) → (4)
Brake Fluid Flush Subaru: Air bleeding sequence (1) → (2) → (3) → (4)

5.) Install one end of a vinyl tube onto the air bleeder and insert the other end of the tube into a container to collect the brake fluid.

Brake Fluid Flush Subaru: Install one end of a vinyl tube onto the air bleeder and insert the other end of the tube into a container to collect the brake fluid.
Brake Fluid Flush Subaru: Install one end of a vinyl tube onto the air bleeder and insert the other end of the tube into a container to collect the brake fluid.



NOTE:
• Cover the bleeder with cloth, when loosening it, to prevent brake fluid from being splashed over surrounding parts.
• During the bleeding operation, keep the brake reservoir tank filled with brake fluid to eliminate entry of air.
• The brake pedal operation must be very slow.
• For convenience and safety, two people should do the work.
• The amount of brake fluid required is approx. 500
m2 (16.9 US fl oz, 17.6 Imp fl oz) for total brake
system.

6.) Have a friend depress the brake pedal slowly two or three times and then hold it depressed.
