Headlight aiming basics for Subarus:

Headlight aiming basics for Subarus:

Subaru models equipped with aerodynamic headlights require no special fixtures for headlight alignment. Each headlight is equipped with a built-in headlight aiming mechanism. The following sequence demonstrates the correct technique for adjusting the headlights on a Subaru Legacy equipped with aerodynamic headlights.

Headlight aiming basics for Subarus: Some basic headlight adjusting techniques for Subaru cars.
Headlight aiming basics for Subarus: Some basic headlight adjusting techniques for Subaru cars.

1.) Turn off the headlight before adjusting headlight aiming. If the light is necessary to check aiming, do not turn on the headlights for more than two minutes.

2.) Inspect the area around the headlight for any damage. If the vehicle has been involved in an accident, it may not be possible to properly adjust the headlights until the damage has been professionally repaired.

3.)The vehicle must be parked on level ground and all four tires must be properly inflated.

Pages: 1 2
AWD, forester, gc8, Impreza, STi, Subaru, Suspension, UK, USDM, WRX

Maintenance: Subaru Periodic Maintenance Part 4:

Maintenance: Subaru Periodic Maintenance Part 4:

Steering and Suspension:

Steering and suspension parts are a lot like the brake system components. Their proper operation is vitally important to the safety of the driver and his passengers, but it is very difficult to determine how long it will be before any of these components will require attention. That’s why an inspection of all steering and suspension components is required at 15 month/15,000 mile intervals. Changes to these systems may be too gradual for the driver to even notice, leaving it to you to ferret out and correct any wear or damage that has taken place.

Maintenance:Subaru Periodic Maintenance Part 4: Regular checks of the steering and suspension is important.
Maintenance:Subaru Periodic Maintenance Part 4: Regular checks of the steering and suspension is important.

We won’t cover all of the steering and suspension checks here. There’s too much variation between different Subaru models to do an adequate job. What you’re looking for is anything that reduces the original precision of the steering and suspension systems. Perhaps the steering has a little too much play in it or the shocks and struts don’t handle the bumps in the road as well as they did when new. Specific tests for the Subaru model you’re working on can be found in the service manual.

Check the power steering system for dampness or other signs of fluid leakage. The power steering pump reservoir is a good place to start. If the reservoir is low, the fluid has probably leaked out, as it has no place else to go. Approved fluids for the power steering system include Dexron II, IIE or III.


GENUINE OEM SUBARU ATF-HP P/S FLUID QUART BOTTLE

Pages: 1 2 3 4
AWD, Ej20, ej20G, forester, gc8, Impreza, Legacy, Subaru, UK, USDM, wrc, WRX

Antilock Brake System for Early Subaru Part 3:

Antilock Brake System for Early Subaru Part 3:

Damping Oscillations:

An additional benefit of this arrangement is that the mechanical valve damps out some of the unwanted oscillation in the brake pedal as the ABS pump runs. Because of this, the F valve used on the ABS-2SL system is no longer needed and has been eliminated from the circuit.

Antilock Brake System for Early Subaru Part 3: The Legacy RS rally car benefited greatly from having a superior ABS unit.
Antilock Brake System for Early Subaru Part 3: The Legacy RS rally car benefited greatly from having a superior ABS unit.



ABS Operating Modes:

To illustrate the four operating modes of this ABS system, we’ll assume that the ECU is operating only the solenoid for the right rear brake circuit. Recall that this circuit also affects the left rear brake circuit through the mechanical valve.

Normal Braking:

• Driver depressing pedal

• ECU passive (monitoring)

• Zero current in solenoid valves

• Pump off

• Plunger piston full right, pressure port open

• Master cylinder pressure supplied to all wheel cylinders

Pressure-Reduce:

• Pump pressure raising pedal

• ECU controlling solenoid valves and pump

• Full current in the right rear solenoid valve

• Pump running

• Plunger piston moves left, closes pressure port; system balances the two rear wheel cylinders.

Pressure-Hold:

• Pedal firm

• ECU controlling solenoid valves and pump

• Half current in the right rear solenoid valve

• Pump Off

• Pressure port closed

• Plunger piston is stationary, maintains reduced pressure in the right and left rear wheel circuits.

Pages: 1 2 3
2.5RS, AWD, Drivetrain, Ej20, forester, gc8, Impreza, JDM, Legacy, Subaru, Suspension, UK, USDM

Antilock Brake System For Early Subaru Part 2:

Antilock Brake System for Early Subarus:

ABS Service And Brake Bleeding Procedures:

Antilock Brake System for Early Subarus: The first Subaru rally car the Legacy RS relied upon the bousch/nippon ABS units to perform on the WRC circuit.
Antilock Brake System for Early Subarus: The first Subaru rally car the Legacy RS relied upon the bousch/nippon ABS units to perform on the WRC circuit.

Always check the fluid level of the master cylinder and bleed the wheel cylinders following the procedure listed in the service manual. When the HCU has been removed and/or replaced, the fluid must be drained. Replace the cone screws with bleed screws and attach a hose to drain fluid to a container.

Antilock: ABS Service And Brake Bleeding Procedures: A early Subaru Nippon ABS unit ECU.
Antilock: ABS Service And Brake Bleeding Procedures: A early Subaru Nippon ABS unit ECU.

Use extreme care when performing this procedure to prevent damage to the internal components of the HCU. Do not apply AV signal for more than 5 seconds for each application. If no AV signal is received, it is not necessary to close bleed screw between brake pedal applications.

Antilock Brake System Notes and Cautions:

The ECU on early Subaru ABS systems can only display one trouble code–the lowest numbered code. Correct the fault indicated by the trouble code and recheck ECU for another code. Repeat the self-diagnostic procedure listed above, and the next highest code will be displayed. Refer to the appropriate model year service manual for the trouble codes and corrective actions. While the ABS ECU is in the fault mode, the ABS will go to fail-safe and remain passive under all braking conditions. The brake system will function as a conventional power-assisted system without ABS.

Pages: 1 2 3 4 5
2.5RS, AWD, Drivetrain, Ej20, EJ25, forester, gc8, Impreza, STi, Subaru, Transmission, UK, USDM

Maintenance:Subaru Periodic Maintenance Part 3:

Maintenance: Subaru Periodic Vehicle Maintenance Services:

Brake Fluid:

Many late model Subaru vehicles are equipped with ABS braking systems. The added complexity of these systems provides an additional incentive for following the recommended brake fluid replacement interval of 30 months or 30,000 miles. Brake fluid accumulates water and other contaminants over time. These contaminants can attack the internal parts of the brake system, compromising its performance and possibly causing brake failure.

Maintenance: Subaru Periodic Vehicle Maintenance Services: Make sure to replace brake fluid at least every 30 months of 30,000 miles. At least once a year if the Subaru sees heavy track use.
Maintenance: Subaru Periodic Vehicle Maintenance Services: Make sure to replace brake fluid at least every 30 months of 30,000 miles. At least once a year if the Subaru sees heavy track use.

The brake master cylinder has a semi-transparent reservoir, making it possible to check the fluid level without removing the reservoir cover. This minimizes the exposure to outside air and limits the amount of moisture that can reach the brake fluid. The fluid level will drop as the brake shoes and pads wear, but the reservoir is large enough to compensate for these changes. If the fluid level is very low, it’s a sure sign the brake pads or shoes are nearly worn out, or there is a leak in the brake system.

Note: When the brake fluid level in the reservoir tank is lower than the specified limit, the brake fluid warning light in the combination meter will come on.

Subaru warns against mixing brake fluids from different manufacturers. Doing so may degrade the quality of the fluid. Only DOT 3 or 4 brake fluid should be used in any Subaru vehicle preferably Subaru brake fluid if you are not going to do a track day build. Consult the service manual for vehicle specific brake bleeding procedures.

Subaru OEM Brake Fluid:

Subaru SOA868V9220 Brake Fluid – 1 Pint

Pages: 1 2 3 4
2.5RS, AWD, Drivetrain, Ej20, ej20G, forester, gc8, Impreza, JDM, Legacy, Subaru, Suspension, Transmission, USDM

Antilock Brake System for Early Subaru Part 1:

Antilock Brake System for Early Subarus:

A variety of antilock brake system (ABS) have been installed in Subaru vehicles since the first systems were installed in the 1990 Legacy.  In the sections that follow, we’ll give you a brief overview of each system and explain proper diagnostic techniques.

Antilock Brake System for Early Subarus: A Subaru SVX ABS system.
Antilock Brake System for Early Subarus: A Subaru SVX ABS system.

Antilock Brake System for Early Subarus:

Early Subaru Antilock Brake Systems:

The original Subaru Legacy Antilock Brake System (ABS) was licensed by Bosch and manufactured by Nippon ABS, Ltd. The system electronically controls brake fluid pressure supplied to the brake system. This control helps to prevent “wheel lockup” during braking on slippery surfaces and emergency situations. The system includes a fail-safe feature, which indicates a malfunction by illuminating the warning lamp. The system is then returned to a conventional power brake system. The four channel system provides accurate individual wheelspeed control and improves the directional stability of the vehicle during braking.

Antilock Brake System (ABS) Components

• Tone wheels (4)

• Speed sensors (4)

• Electronic control unit (ECU)

• Hydraulic control unit (HCU)

• G sensor (manual transmission models)

• Warning lamp

A tone wheel is attached to each wheel hub and rotates at the same speed as the hub. The magnetic speed sensor is mounted in the axle housing. The notched tone wheel acts as a reluctor which modulates the magnetic field of the speed sensor. The tone wheels are individually replaceable.

The speed sensor provides an alternating voltage signal to the ECU. The alternating voltage and frequency corresponds to wheelspeed.

Pages: 1 2 3 4 5 6
AWD, Drivetrain, Ej20, EJ25, EJ257, forester, gc8, Impreza, Legacy, STi, Transmission, UK, USDM, WRX

Maintenance:Subaru Periodic Maintenance Part 2:

Maintenance: Subaru Periodic Vehicle Maintenance Services:

Maintenance: Subaru Periodic Vehicle Maintenance Services: Often the best value and best parts come from Subaru themselves and often aftermarket replacement parts will be of substandard quality.
Maintenance: Subaru Periodic Vehicle Maintenance Services: Often the best value and best parts come from Subaru themselves and often aftermarket replacement parts will be of substandard quality.

Fuel Filter and Fuel Lines:

There’s no easy way to check the inside of a fuel filter for dirt or other contamination buildup. That’s why a 30 month or 30,000 mile replacement interval is prescribed. If the customer happens to buy a tank-load of bad gasoline before reaching this interval, it will be necessary to replace the fuel filter ahead of time. There’s no way to clean the filter—replacement is the only option. Remove the battery negative cable before you begin work on the fuel filter. Remember gasoline is a very flammable substance.

The fuel filter is just one small part of the fuel system. The fuel system includes many sections of steel and rubber fuel line that run the length of the vehicle several times. The fuel pump, fuel tank, and fuel pressure regulator are just a few of the other parts of the fuel system. While you’re replacing the fuel filter, don’t forget to check the condition of the rest of the fuel system.

Maintenance: Subaru Periodic Vehicle Maintenance Services: Pictured is a Subaru STi fuel system. Making sure your filter is in good condition and is replaced regularly will prevent problems from occurring.
Maintenance: Subaru Periodic Vehicle Maintenance Services: Pictured is a Subaru STi fuel system. Making sure your filter is in good condition and is replaced regularly will prevent problems from occurring.

If any of the rubber hoses (especially the ones that were opened up to replace the filter) look damaged or frayed, they must be replaced before they can cause any further damage. Weak fuel hose clamps should be replaced, and the new ones must be properly positioned and tightened to specification.


Subaru 42072PA010 Fuel Filter

Pages: 1 2 3 4
Ej20, EJ25, EJ257, forester, Impreza, Legacy, Ringland, STi, Subaru, Turbo, USDM, WRX

Oil Additives: What Subaru Says

Oil Additives: What Subaru Says

Subaru of America does not recommend the use of any engine oil additives in any Subaru engine crankcase. Subaru engines are designed to be lubricated with normal petroleum or synthetic-based engine oils in the viscosity and grade indicated in the Owner’s Manual for each specific engine and usage condition. Subaru has not tested the effectiveness or compatibility of any engine oil additives.

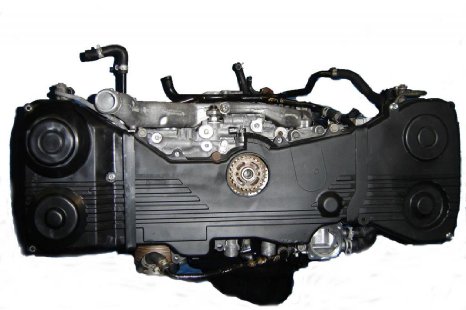

Oil Additive: Avoid adding any oil additives to your Subaru boxer engine.
Oil Additive: Avoid adding any oil additives to your Subaru boxer engine.

However, the use of such oil additives does not void warranty coverage. Usage of any additive is at the owner’s discretion. Since Subaru has not tested the compatibility or effectiveness of any such additives, should an engine failure occur that is determined to be caused by the incompatibility or performance of such an additive, the vehicle owner would be be referred to the additive manufacturer to request reimbursement of the cost of the repair.

If you are using oil additives to try to save a leaking headgasket it’s better to just suck it up and just either install new headgaskets yourself or have the work done by a trusted mechanic.

Either use Subaru’s OEM synthetic motor oil or use Rotella T6 motor oil. If your Subaru is still under warranty by Subaru it’s best to get your oil changed by a Subaru dealership and avoid introducing oil additives into your boxer engine. Even if it’s Subaru’s official stance that they won’t void warranties if oil additives are involved it doesn’t mean that they won’t if there is more evidence of engine “tampering”. Avoid anything that could potentially cause a dealership to refuse service to your car in the future.

Otherwise you might have a expensive repair bill if your Subaru boxer engine spins a bearing or has a ringland failure. Of course adding aftermarket parts like an exhaust or intake along with a tune will greatly increase the justification of a Subaru dealership to void a warranty more than adding oil additives.

Not adding oil additives can be another step in avoiding a void warranty from Subaru of America. On a final note remember that Subaru can scan your ECU for previous tunes even if you went back to a stock tune and will void a warranty for that.
