Rear strut brace install on Subaru WRX/STi 08+:

Rear strut brace install on Subaru WRX/STi 08+:

This is a step by step guide on how to install a rear strut brace in a 2008+ Subaru WRX/STi. Installing a rear strut brace on a 2008+ WRX/STi is more much more involved than installing a front brace. The chassis is significantly different than the new-age 02-07 Subaru Impreza. The need to cut clearances into the floor for the left and right brackets increases the difficulty for this install.

1.) Only work on one strut tower at a time. Only loosen one set of nuts at a time, and do not put the car up on lifts, jacks, or anything else that lifts the tires off the ground. All of these precautions are to minimize changes to the alignment while working on the installation.

2.) Loosen the left and right hinges on the rear strut brace using the 17mm socket and the 8mm allen head wrench. You want to be able to move the brace around as you attach each side bracket to the car’s strut towers.

3.) Remove the hatch floor and set it aside.

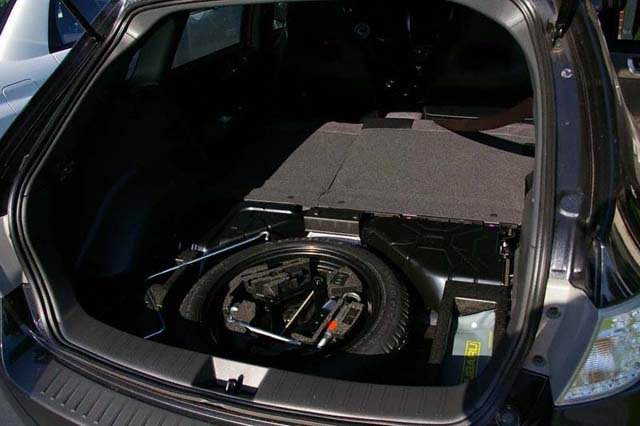

Rear strut brace install on Subaru WRX/STi 08+: Remove the rear floor.
Rear strut brace install on Subaru WRX/STi 08+: Remove the rear floor.

4.) Remove the left and right panels from the wheel covering so that you’ll have access to the tops of the strut towers. Working your finger tips under the edge of the panel and carefully working my way around the edges while pulling away from the wheel cover worked best without requiring any special tools. It also helped avoid scratching the plastic.

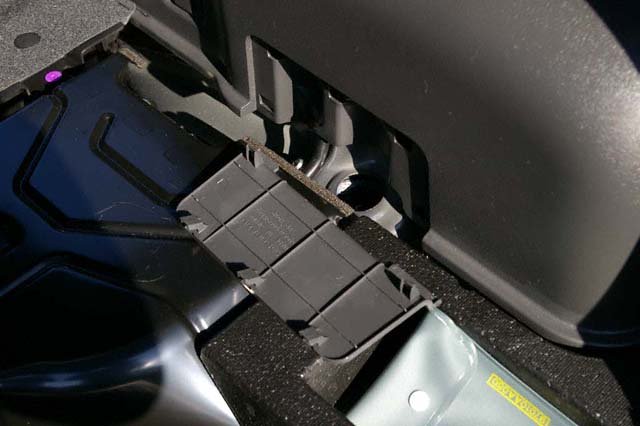

Rear strut brace install on Subaru WRX/STi 08+: Remove these panels both both sides with your hands. If you can't do that gently use a screwdriver to remove.
Rear strut brace install on Subaru WRX/STi 08+: Remove these panels both both sides with your hands. If you can’t do that gently use a screwdriver to remove.
Pages: 1 2 3
AWD, brembo, Bride, Cusco, DCCD, JDM, STi

The 2008 Cusco Subaru Impreza WRX STi Super GT

Cusco's Impreza in GT300
2008 Subaru Impreza WRX STi Super GT

The Cusco team have been campaigning a heavily modified STi with a rear drive conversion as required by regulations since the late nineties and having no two-door model available at present, the Super GT committee gave a special permit for them to race with a four-door model instead of a two-door one. The rear drive conversion rule was lifted in 2006, and since then they returned to all-wheel drive with a transaxle gearbox.

GT300
The Cusco Subaru Impreza in 2008.

In 2008, Cusco’s Impreza won the first GT300 race in Sepang. It marked the first AWD car victory in Super GT/JGTC history. Even though they were having very impressive results(with 1 win and 2 podiums) that season, Cuscho announced that they would not participate in the 2009 season as they want \ The performance of Cusco was outstanding even though they were using a 4-door car, it later lead the Super GT committee to officially allow all 4-door model cars to participate the series. The Toyota Corolla Axio followed suit in 2009.

Cusco's Impreza
In 2008, Cusco’s Impreza won the first GT300 race in Sepang. It marked the first AWD car victory in Super GT/JGTC history.
