FMIC (Front Mount Intercooler) STi/WRX FAQ

FMIC: The primary purpose of a FMIC (front mount intercooler) is to reduce post turbo air temperature prior to entering the combustion chamber via the throttle body.

FMIC install in a Subaru WRX STi.

HP gain is around 15HP. This figure can vary as results can be further enhanced with post installation tuning. This is one modification that is extremely difficult to put a traditional HP figure on as results truly vary from car to car based on tuning and turbo output in terms of CFM.

Which manufacturer is best? This topic is highly debated. There have been no reported consistent “bad” FMICs on the market. Obviously, there may have been bad FMICs sold, but not enough to report as “bad” overall.

Which FMIC construction method is best? FMICs have two main construction methods:
1. tube and fin
2. bar and plate
There is much debate as to which construction method is best. There are many pros and cons with each design type, but no real hard data. Bar and plate designs are consistently reported as more damage resistant which gives them the edge with regard to appearance longevity. In the end, you are best advised to chose a FMIC based on other qualities rather than concentrate on construction design.

Pages: 1 2 3 4 5 6
AWD, STi, Subaru, Turbo, USDM, WRX

How to shift with AWD or a Manual Transmission.

How to shift with AWD or a Manual Transmission:

Where can I find good background information of transmissions? A good general reference for new people as well as a refresher for more advanced users is How Stuff Works’ Transmission Tutorial.

Where can I find good background information on differentials? A good general reference for new people as well as a refresher for more advanced users is How Stuff Works’ Differential Tutorial.

Shift: STi Shifter

Is shifting different with an AWD car vs. a FWD or RWD car? One has to visualize the power transfer in a car to get a better understanding. In a FWD or RWD car, if you shift or launch the car too aggressively, the excess power is transmitted to the tire(s), which will spin. Put another way, excess power is “burned off” through tire smoke. In an AWD car, if you shift or launch the car too aggressively, the excess usually isn’t enough to overpower thetires’ grip. In this situation, the excess power must be absorbed somewhere else in the drive train. Though some drive train shock is normal, in an overload situation, excess power is transmitted to the various driveline components, which can accelerate wear and tear.

Where are the shifting differences most apparent? Starting off in first gear and the 1-2 shift are the most common causes of driveline shock. Obviously, there is reason to shift responsibly in every gear but these are the most commonly seen problematic shifting issues.

Is resting my hand on the shifter bad? From the WRX Owners Manual: “Do not drive with your hand resting on the shift lever. This may cause wear on the transmission components”. This advice should apply to every Subaru MT model. That being said, the safest course of action is to keep both hands on the wheel unless actually shifting.

Pages: 1 2 3 4 5 6 7
Ej20, EJ257, STi, Subaru, Tuning, Turbo, USDM

Spark Plug replacement on a Subaru Impreza STi/WRX

The following procedure explains removing and replacing spark plugs on a Subaru Impreza STi. The original instructions below specifically refer to fitting Denso Iridium spark plugs that are one step colder however these procedures are generic for OEM plugs also. Please click the thumbnail pictures below for a full size version.

The author indicates this took around 1 hour to complete the first time, perhaps half that next time. Right, off you go you are being timed!

Procedure

Remove the battery and windshield washer fluid reservoir (Step 1)

This is simple, just four bolts holding the battery and two bolts (<< seen in step one), a hose and a clip (<< seen in step 1.1) holding the washer reservoir in.

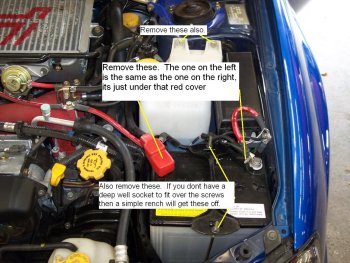

Spark plug step 1.) Battery Removal.
Spark Plug removal step 1.) Windshield washer reservoir.

Removing intake and assembly (Step 2)

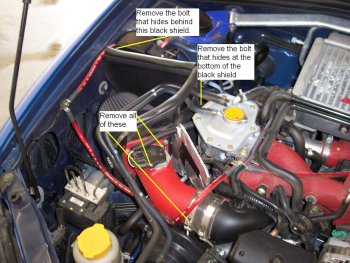

Note: the author can break this down further as he doesn’t have the stock intake, instead the K&N typhoon is shown. The stock intake is very easy just a couple of bolts, clamps etc. (<< steps 2 and 2.1)

Spark plug step 2.) Remove intake duct.
Spark plug step 2.) K&N Removal
Pages: 1 2 3 4
EJ257, STi, Subaru, Tuning, Turbo, USDM, WRX

Coolant use and Cooling System for Subaru WRX/STi

What type of coolant should I run in my car? You can never go wrong by using Genuine Subaru Coolant available through your local dealer.

Subaru Genuine Coolant. To the left Super Coolant and to the right long life coolant.

Is the Subaru coolant pre-mixed or not? They have both kinds, but BE SURE to read the labels carefully as they are nearly identical in appearance except the wording on the package!

Is there a required coolant additive? Yes. Subaru Cooling System Conditioner has recently been required to be added with every coolant replacement to prevent coolant system leaks. This recommendation applies to every Subaru model for every model year.

Subaru Cooling System Conditioner has recently been required to be added with every coolant replacement to prevent coolant system leaks. This recommendation applies to every Subaru model for every model year.
Pages: 1 2 3 4 5 6
exhaust, Turbo, WRX

Downpipe Turbo Subaru FAQ

Downpipe Turbo Subaru FAQ

Buying a aftermarket downpipe is a typical modification which removes or replaces the stock catalytic converter with a better flowing unit. It also increases the exhaust diameter for better flow.

HP gain is 15-20HP. This figure is highly debated as different manufacturers use different dynos with different cars with different levels of mods. It also varies because some downpipes use one high flow cat, while others are catless and actually extend far enough back to eliminate the 3rd cat as well.

I have an 06/07 WRX, is the downpipe the same? No. The 06/07 WRX has a unique exhaust in that it’s downpipe is both the downpipe and catpipe sections of the “older” exhaust. This means you must use a “long” downpipe to bolt up to the rest of your exhaust system. A full TBE will fit fine, but when replacing just the downpipe, you must use a long downpipe.

I have an 08/09 WRX, is the downpipe the same? No. The 08/09 WRX has a unique exhaust in that it’s downpipe is the same, fitment wise, as the Legacy GT. So if you have one of these models, you must ensure you state your model/year to your vendor or specifically request the “Legacy GT downpipe” for your car in order to assure proper fitment.

Which manufacturer is best? This topic is highly debated. There have been no reported consistent “bad” downpipes on the market. Obviously, there may have been bad pipes sold, but not enough to report as “bad” overall.

What downpipe metal material is best? Downpipes are made from mild steel and stainless steel (304 & 321). There is no irrefutable evidence that one material is better than the other. Obviously, corrosion levels are higher with mild steel (coated or otherwise). Article on exhaust materials.

Which downpipe construction method is best? Downpipes have 4 main construction methods:
1. Blank plate: Identical to stock construction with the wastegate portion completely covered.
2. Bellmouth: Completely open design.
3. Split bellmouth: Similar to bellmouth only with a divider inserted to separate the wastegate.
4. Divorced or Twin Dump: Separate exhaust and wastegate piping that connect further downstream.

There is no irrefutable evidence that one design is better than the other. The thought process is that the greater the separation there is between the wastegate gases and exhaust gases, the smoother the overall exhaust flow.

Pages: 1 2 3 4 5
Ej20, EJ257, Impreza, Intake, Intercooler, STi, Subaru, Turbo, WRX

Intake pipe turbo subaru FAQ

Intake Turbo Subaru

The primary purpose of an aftermarket intake is to increase the amount of air flow the engine receives.

HP gain is 0-15HP. These HP figures are a range as different intakes have different dyno results.

What is an aftermarket intake? Aftermarket intakes can be broken down into two types:
1. Short ram: AKA shorty or ram pod.
2. Cold air intake: AKA CAI.

What does the stock intake look like? To gain a perspective on how aftermarket intakes function, the stock intake features will be shown and discussed for further clarity.

This is the stock intake as viewed from the driver’s side.
The “U” shaped assembly and the tank that connects to it on the left is commonly referred to as the snorkel,  silencer, or resonator. It is actually hidden in the fender.

Stock Subaru turbo intake piping.

This is the stock intake as viewed from the passenger’s side.

This is the stock intake as viewed from the passenger’s side.

This is the stock intake as viewed from above.
1. Stock “ram intake” funnel.
2. Stock air filter box.
3. MAF sensor.
4. MAF sensor piping.

This is the stock intake as viewed from above.
1. Stock “ram intake” funnel.
2. Stock air filter box.
3. MAF sensor.
4. MAF sensor piping.
Pages: 1 2 3
exhaust, Impreza, Intercooler, STi, TMIC, Turbo, WRX

Subaru WRX and STi Exhaust general info

Subaru WRX and STi Exhaust general info:

The primary purpose of an aftermarket exhaust is to remove or replace the stock catalytic converter(s) with a better flowing unit. It also increases the exhaust diameter for better flow. The term “aftermarket exhaust” can be broken down into the three main types:

1. Turbo back exhaust (TBE) covers items 1-4 as described below.
2. Cat back exhaust (CBE) covers items 3&4 as described below.
3. Axle back exhaust (ABE) covers item 4 as described below.

The stock WRX Subaru exhaust consists of:

1. Downpipe (with cat) | 2. Midpipe (with cat) | 3. Rear Exhaust Pipe | 4. Axle Back Muffler

The stock WRX Subaru exhaust consists of: 1. Downpipe (with cat) | 2. Midpipe (with cat) | 3. Rear Exhaust Pipe | 4. Axle Back Muffler

Keep in mind that the above information is catered to the 2002-2005 WRX and is likewise applicable to all years of the STi, though there are slight variations. For example, the STi (all years) has a catless uppipe and the 2006+ WRX has a one piece downpipe/midpipe.

HP gain is dependent on the type of exhaust chosen. TBE gains are 20-30HP. CBE gains are 5-15HP. ABE gains are 5-10HP. These figures are highly debated as different manufacturers use different dynos with different cars with different levels of mods. It also varies because exhausts use different amounts of catalytic converters or are catless.

What about overall fitment between the WRX and STi or different model years? All OEM or aftermarket exhausts designed for 02-07 WRX/STi will fit either the 02+ WRX sedan/wagon or 04+ STi. Occasionally, you will have a slight fitment issue with some models (moreso if your car has the optional rear differential cover) that usually get be fixed via hanger adjustment, longer exhaust hangers etc. 06+ models have fitment issues with some exhausts (mainly the muffler portion) due to the new rear diffuser.

I have an 06+ WRX, is the downpipe the same? No. The 2006+ WRX has a unique exhaust in that it’s downpipe is both the downpipe and midpipe sections of the “older” exhaust. This means you must use a “long” downpipe to bolt up to the rest of your exhaust system. A full TBE will fit fine, but when replacing just the downpipe, you must use a long downpipe. Check with your Vendor for other possible fitment issues prior to ordering.

Pages: 1 2 3 4 5 6
STi, Subaru, USDM, WRX

Trunk swaps for STi and WRXs

Remove the glow in the dark release handle. Once this is done you can get to the lock. Simply twist the orange thing around, and pop the metal rod. Take a screw driver (you also might need a hammer as well) and pry that black clip off. Its really tight on there so you will need to use some force (this clip is exactly like the clip securing the brake lines).

Remove latch from trunk (optional as it may not be needed)
Remove the 2 bolts, twist yellow thing around and pop out that metal rod. You will also need to pop out the cable from that glow in the dark handle.

Remove trunk
Remove the 4 12mm bolts that secure the trunk to the trunk arms. Beware that the STi trunk weighs a TON (something like 50+ lbs). You will also have to unplug the 3rd brake light and clip all the wire retainers off the STi trunk arm to get the trunk off.
