Short Shifter Install on 04-07/08-11+ Subaru STi:

Short Shifter Install on 04-07 Subaru STi:

A step by step guide on installing a short shifter for a 04-07 Subaru STi and 08-11+ Subaru STi/Legacy.

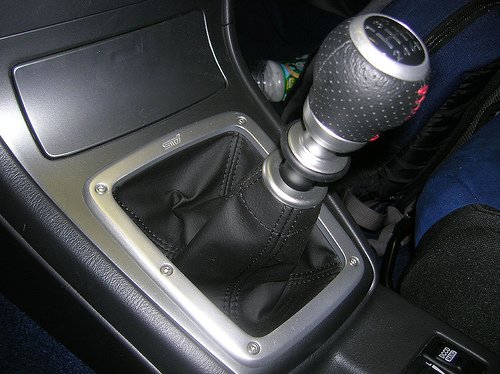

OEM Short shifter: Installed and ready to go.
OEM Short shifter: Installed and ready to go.

Tools needed:
10, 12, 14, 17mm wrenches
Jack Stands
Jack
Needle nose pliers

Short Shifters used:

Subaru OEM Short Shifter 04-07 STi:

Genuine Subaru STI Short Throw Shifter – 6MT

Subaru OEM Short Shifter 08-11 STi, WRX, Legacy:

Genuine Subaru C1010AG001 STI Short Throw Shifter



Step 1: Once the car is up on jack stands / a lift, you want to support the transmission and remove the rear cross member. You will need to remove it later anyway, it also makes it much easier to work without it in the way. I used a bottle jack and block of wood to support the tranny, but im sure a transmission jack would work much better if you have one.

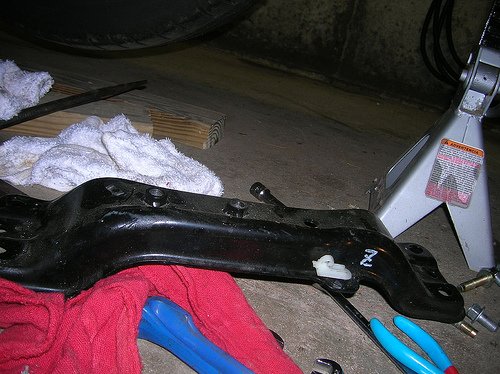

This picture shows the cross member removed.

Short shifter: This picture shows the cross member removed.
Short shifter: This picture shows the cross member removed.

Step 2: Once the cross member is unbolted you will need to unplug the 02 sensor, and unclip its harness from the cross member. It is held by two plastic clips that can be pushed out of the holes in the member without much trouble.

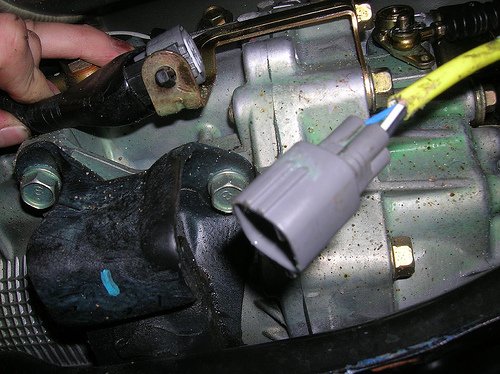

Short Shifter: O2 sensor is held by two plastic clips that can be pushed out of the holes in the member without much trouble.
Short Shifter: O2 sensor is held by two plastic clips that can be pushed out of the holes in the member without much trouble.

Step 3: Remove the bolt from the lower rod, I believe it is a 14mm. The nut on the other side is attached to the bracket, so you don’t need a wrench on it. I found that ratcheting wrenches work best for most of these bolts.

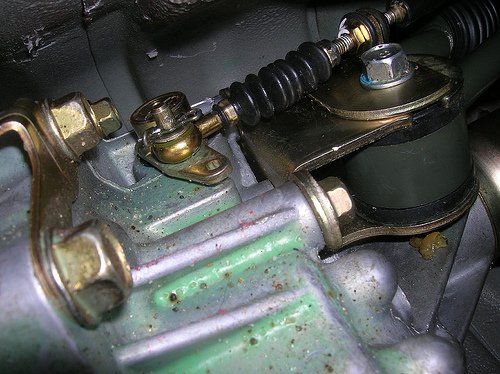

The bolt that needs to be removed is the one going through the rubber bushing shown in the upper right of this picture.

Short Shifter: The bolt that needs to be removed is the one going through the rubber bushing shown in the upper right of this picture.
Short Shifter: The bolt that needs to be removed is the one going through the rubber bushing shown in the upper right of this picture.

Step 4: Now you can disconnect the reverse lockout cable. It is held in with a pin that can be pulled out with a pair of pliers. I stuck an Allen wrench through the cam as shown in the Cobb short shifter install when I removed it just in case. There is a washer on the lockout cable that may be stuck in the grease, you will want to take it off and set it aside so it doesn’t get lost. The lockout cable can be seen on the left side of the picture above. You can now move the lower rod down, and move the lockout cable out of the way.

Pages: 1 2 3
AWD, STi, Subaru, Transmission, Turbo, USDM, WRX

Clutch replacement for a Subaru WRX/STi:

How to replace a Clutch for a GD Subaru:

This procedure was performed on a MY04 STi with some modifications which may or may not be relevant for the purposes of this How-To. This procedure is only ONE way of removing the transmission and is not meant to be the be-all method. This is a DIY on your driveway process only. If you have access to a lift, this would be the preferred and safest method.

Perform this procedure AT YOUR OWN RISK.

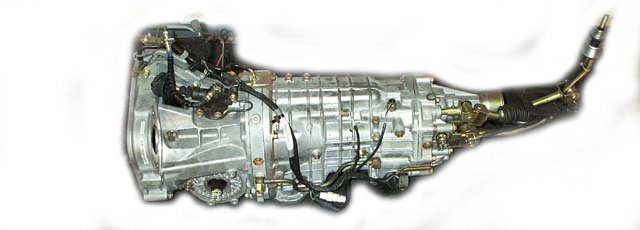

Clutch: STi Transmission
Clutch: This procedure allows you to remove the transmission from a Subaru STI for the purpose of gaining access to the clutch and flywheel system for inspection and or replacement

This procedure allows you to remove the transmission from a Subaru STI for the purpose of gaining access to the clutch and flywheel system for inspection and or replacement.

This procedure allows you to remove the transmission without the benefit of a lift and is meant as a DIY for the weekend warrior. This is by no means a simple or easy procedure and it requires a good deal of strength. IT IS RECOMMENDED YOU HAVE A FRIEND THERE TO HELP. You will need a second pair of hands at times.

Pages: 1 2 3 4
AWD, Ej20, EJ257, STi, Subaru, Tuning, Turbo, USDM, WRX

Clutch: Subaru WRX/Sti clutch FAQ

Clutch: Subaru WRX/Sti clutch FAQ

The first impulse when clutch shopping is to get “too much” clutch. This is often a very big mistake, as there will be compromises in the different types and compositions of clutches.

Clutches hold Torque, not Horsepower:
Most performance enthusiasts relate more to horsepower numbers rather than torque, but clutch capacity is measured in terms of torque. Think in terms of a high rpm 250 HP Honda Civic versus a 250 HP Ford Powerstroke turbo diesel. The truck will need about three times the clutch capacity because the engine produces about three times the torque.

Choosing what’s best for you:
It may be difficult to know what clutch is right for a particular application since there are so many different levels of personal tolerance and many variations in design. Some people can tolerate clutch chatter, or noise, or heavy pedal effort, or shorter clutch life, higher cost, or other trade-offs. But why tolerate unnecessary issues if you don’t have to? Get the clutch that suits your needs.

What are the various clutch materials? Other than unique or specialized compositions, clutches are generally comprised of:

1. Organic
2. Kevlar
3. Ceramic
4. Feramic
5. Carbon (initially invented in 1998 by Alcon Components for the Subaru World Rally team )
6. Sintered Iron

Depending on manufacturer specifications, this list also shows the general order of the amount of force the clutch materials can hold.

Organic: Metal-fiber woven into “organic” (actually CF aramid with other materials), original-equipment style. Known for smooth engagement, long life, broad operating temperature, minimal-to-no break in period. Will take hard use, somewhat intolerant of repeated abuse (will overheat). Will return to almost full operational condition if overheated. Material is dark brown or black with visible metal fibers.

Kevlar: High-durability material more resistant to hard use. Engagement is similar to organic, but may glaze slightly in stop and go traffic, resulting in slippage until worn clean when used hard again. Higher temp range in general, but can be ruined from overheating; will not return to original characteristics if “cooked”. Material is uniform yellow/green and may look slightly fuzzy when new.

Ceramic: Very high temperature material. Engagement is more abrupt. Will wear flywheel surface faster, especially in traffic situations. Due to it’s intrinsic properties, ceramic has a very high temperature range. Material is any of several light hues – gray, pink, brown.

Feramic: This unique clutch material is one that incorporates graphite and cindered iron. The result is a friction material that offers good friction coefficient, torque capacity, and smoothness of engagement.

Carbon: Very high temperature material. Engagement is more abrupt. Will wear flywheel surface faster, especially in traffic situations. Slightly more durable and flywheel-friendly compared to other aggressive clutch materials. Material is black.

Sintered Iron: Extremely high temperature material. Engagement is extremely harsh and is generally considered an “on/off switch” both due to it’s characteristics and the clutch types this material is generally associated with. It requires a special flywheel surface. Material is metallic gray in color.
