Rear Wheel Bearing Repair 02-07 Subaru WRX/STi

Rear Wheel Bearing Repair 02-07 Subaru WRX/STi: This is a write up on how to replace your rear wheel bearing for your 02-07 WRX STi.

DISCLAIMER: WORKING ON YOUR CAR IS DANGEROUS. IF YOU FEEL YOU CANNOT COMPLETE ANY OF THESE TASKS, DON’T DO IT, THESE PARTS HOLD YOUR SUSPENSION AND WEIGHT OF YOUR CAR. THIS IS A REFERENCE ONLY! do not attempt.

Tools:
– 32mm Socket (axle nut)
– 19mm, 17mm, 14mm (suspension, and brake parts)
– Needle nose
– Sockets, breaker bar
Torque wrench
– Access to a press
– I used a 36mm to press the bearing
– 26-27 mm for the hub

Parts
– Check with your local Subaru dealer
– Or use online sites or vendors!

Parts I Used
Rear Wheel bearing – #28016PA010
Oil Seal #1 – #28015AA080
Oil Seal #2 – #28015AA070
Rear Axle nut – #28044AA001

Rear Wheel Bearing Install

– First you need to break the torque on your lug nuts
– Get your rear in the air and stable (your going to put some stress on some parts)
– Remove your wheel

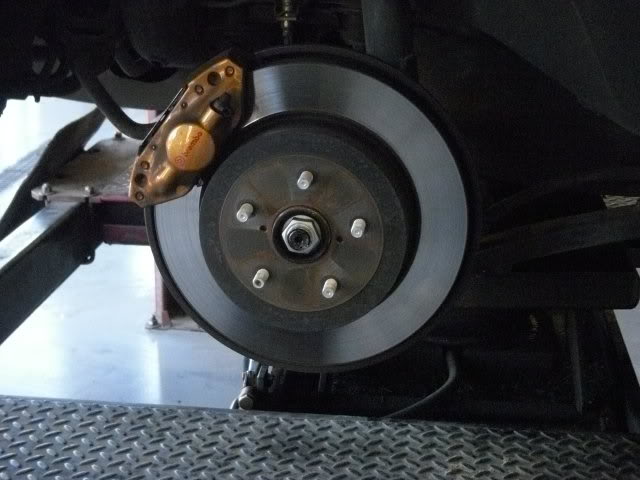

Rear Wheel bearing: Remove your wheel and Locate your axle nut and "uncrimp" it.
Rear Wheel bearing: Remove your wheel and Locate your axle nut and “uncrimp” it.

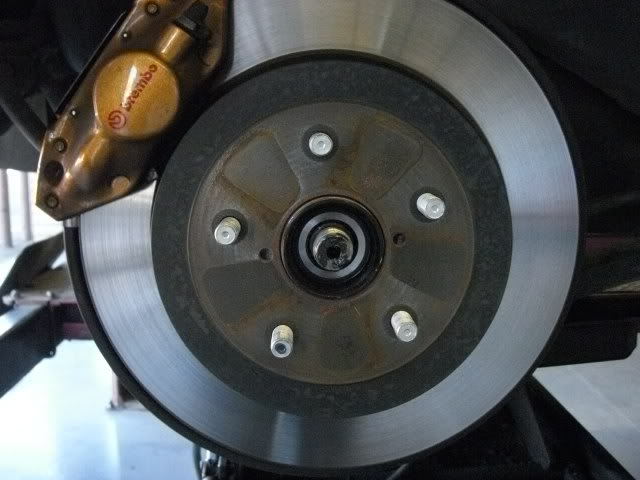

Locate your axle nut and “uncrimp” it. After its uncrimped, make sure you have your parking brake on really well. Either break the torque on it and back it off so its hand tight accessible, or remove it all together.

- Locate your axle nut and "uncrimp" it - After its uncrimped, make sure you have your parking brake on realy good. - Either break the torque on it and back it off so its hand tight accessible, or remove it all together
– Locate your axle nut and “uncrimp” it
– After its uncrimped, make sure you have your parking brake on realy good.
– Either break the torque on it and back it off so its hand tight accessible, or remove it all together
