JDM Automatic Intercooler STi Switch Install:

JDM Automatic Intercooler STi Switch Install:

5.)  Now comes the difficult part in the installation. In the switch there is a insert that allows the switch to clip into the plug, however the JDM Automatic Intercooler Switch is designed backwards for right hand drive cars  so you have to pop out the USDM switch’s insert with a small flat blade screw driver. Then, insert it into the JDM Automatic Intercooler Switch.

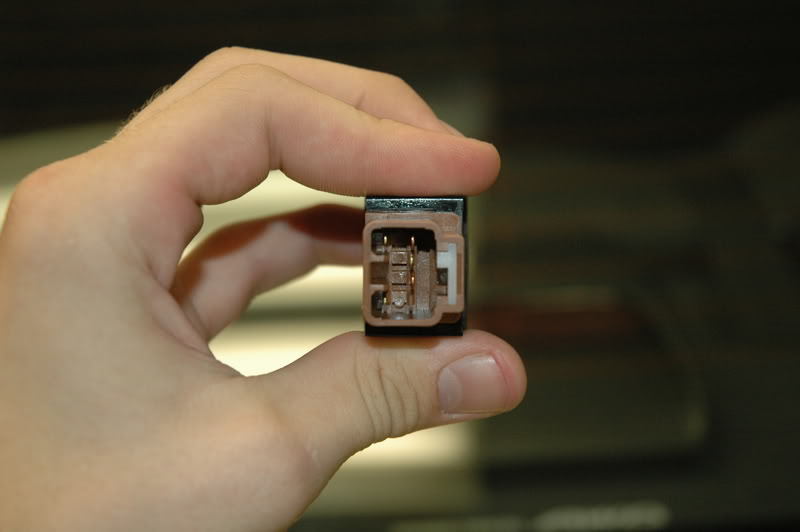

JDM Automatic Intercooler Switch: Here is the JDM switch with the USDM insert inserted. Its the white piece in the inside of the switch.

6.) Snap the new JDM Automatic switch back in and followed by the fuse box cover.

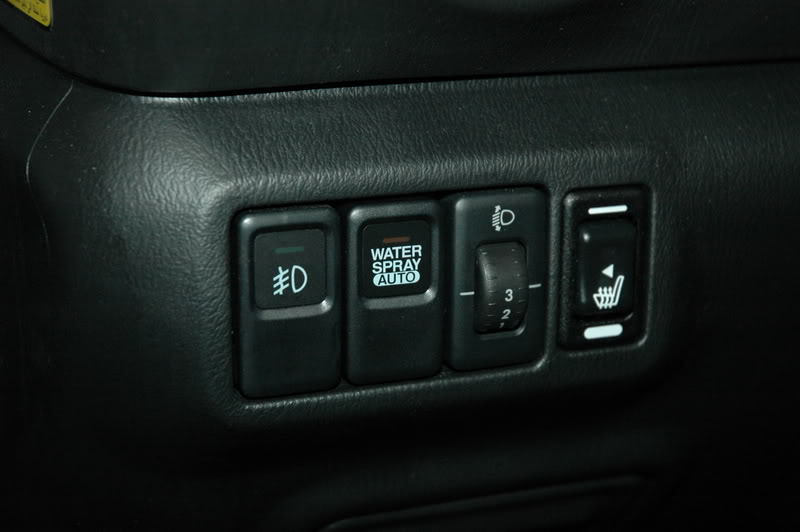

JDM Automatic Intercooler Switch: Your new JDM switch installed.

7.) Now push the button with your key in the ignition position and check to see if the new automatic switch works.
