Subaru Engine Block Piston Size Identifier:

Subaru Engine Block Piston Size Identifier:

The picture below of this paragraph shows the location of piston size and main journal size information on all Subaru engines. As the figure illustrates, it is possible to have more than one piston size in the same engine.

Subaru Engine Block Piston Size Identifier: The picture on the bottom shows the location of piston size and main journal size information on all Subaru engines. As the figure illustrates, it is possible to have more than one piston size in the same engine.
Subaru Engine Block Piston Size Identifier:
The picture on the bottom shows the location of piston size and main journal size information on all Subaru engines. As the figure illustrates, it is possible to have more than one piston size in the same engine.

Valve Cover Gasket replacement Subaru WRX:

Valve Cover Gasket replacement Subaru WRX:

This is a step by step guide on replacing the valve cover gasket on Subaru flat four engines. This guide will work for most Subaru turbo cars 02-07+ and most other naturally aspirated Subaru cars.

1.) Jack your car up and drain the oil. Remember to put the car on jack stands. You don’t want the car dropping on you.A lot of people do this job with the oil still in the pan, but its better to rather play it safe and drain the oil completely.

2.) Remove the front air scoop. It takes two 10mm bolts.

3.) Remove the nice Cold Air intake box.

4.) After removing all that, you should see this a total of 8 outer bolts and the 2 inner which holds the spark plug coils.

Valve cover gasket: In the center are the two coil packs that need to be removed.
Valve cover gasket: In the center are the two coil packs that need to be removed.

5.) Unscrew them and label them. You don’t want the bolts going into the wrong place. It was a very hard to get any decent clearance so take your time.

TGV Deletes for Subaru WRX/STi

TGV Delete on WRX/STi’s:

The primary purpose of a TGV delete is to remove the divider bar and butterfly valve inside the TGV assembly to improve airflow to your engine.

TGV Delete: Top is a deleted TGV and bottom is the stock TGV.
TGV Delete: Top is a deleted TGV and bottom is the stock TGV.

HP gain is 12 HP. This figure is highly debated as different manufacturers use different dynos with different cars with different levels of mods.

What is the purpose of TGV Deletes? The are meant to reduce cold idle emissions. Nothing more, nothing less. Once your vehicle is warm, the butterfly valves open fully and remain that way.

Which manufacturer is best? This topic is highly debated with no real winner in terms of performance. There are several companies that offer the TGV delete service as well as purpose built units or Japanese models which are, in essence, hollow units.

Japanese model, what is that? TGV internal assemblies are only used for cold start emissions on US cars. Hence, the Japanese TGVs do not have the divider plate or butterfly valves. Some models are one piece intake manifolds with longer runners that make up the TGV portion and other models are just like their US cousins with no internal plates or butterfly assemblies. Neither units have the associated TGV external motor controllers as well.

Which TGV Delete has the best gains? There is no irrefutable evidence that any TGV Delete option has better gains than another. The consensus, if there is one, is they are all within 5HP or less, gain wise, of each other.

Do TGV Deletes cause a CEL? Yes. By removing the TGV motors, it will throw quite a few CELs. The bad news with this, is the TGV CELs will throw your car into limp mode, meaning unlike some other CELs that you can still drive around with and have no fear, the TGV codes limit boost/RPM operation meaning they must be taken care of in order to drive your car for any reasonable distance.

How do I fix the TGV CEL? You have three methods:
1. Normally, you remove the TGV motors and the rod that holds the butterfly valves in place. You could leave the rod in place (sans butterfly valves) and reinstall the TGV motors. This would allow them to actuate normally making the system think everything is working correctly.
2. APS makes a block that you attach the TGV motors to, this allows them to actuate normally making the system think everything is working correctly. These are not sold separately though, but can occasionally be purchased in the Private For Sale Forum or on eBay.
3. Various engine management systems can remove the associated CELs.

Do I need to perform the CEL fix? Yes. The TGV CEL codes will throw your car into limp mode. This will limit boost/RPM seen by your vehicle. It will still drive, but it should only be driven a short distance with the TGV CEL. Meaning you can drive it across town or a few short trips, but by no means should you drive it as a daily driven car for weeks on end until you get the proper fix.

Pulley Subaru WRX/STi Rundown

The primary purpose of an aftermarket pulley is to reduce the size and/or mass of the stock unit. They serve two purposes: to reduce horsepower loss and increase throttle response. Notice the use of “reduce horsepower loss”. Pulleys DO NOT add horsepower, rather they free up horsepower due to the reduction of rotational mass.


Grimmspeed Lightweight Crank Pulley Black – Subaru All EJ Engines

A lightweight aftermarket perrin pulley.
A lightweight aftermarket perrin pulley.

HP gain is 5-10HP. These HP figures are a range as there have been very few before/after dyno runs with lightened or under driven pulleys.

What is a lightened pulley? Generally, it is an exact copy of the OEM pulley only CNC machined out of aircraft grade aluminum and powder coated for corrosion protection and aesthetic appeal.

What is an under driven pulley? This is a pulley that mimics the function of the OEM unit, but is smaller in diameter. This will reduce the duty cycle of the pulley and proportionally the parasitic drag on the engine.

Are under driven pulleys bad? It depends on the amount they are under driven. Some under driven pulleys can lead to reduced A/C output, lighting problems, stereo problems, and other voltage issues. Some are lightly under driven and some more so.

Isn’t replacing the stock harmonic damper (pulley) bad? Subarus do not come with a harmonic damper or balancer like some other vehicles do. For other manufacturers’ vehicles, this is a legitimate concern. Proof:

“Thank you for your patience as I checked with our Technical Services Department regarding your message below. They advised that the crank pulley is a pulley and nothing else. It is not used as a harmonic damper/balancer.

Thanks for the opportunity to be of assistance. If you need any future assistance, please feel free to contact us again.”

Best wishes,

John J. Mergen
Customer Service Department
Subaru of America, Inc.

BOV: Blow off Valve Subaru FAQ

BOV: Blow off Valve Subaru FAQ

Term usage: “Blow off valves” go by several names, among them are compressor bypass valve (CBV), air by-pass valve, bypass valve (BPV), blow off valve (BOV), Diverter valve, and possibly a few others. BOV is the common and incorrect term that lumps true blow off valves and bypass valves under the same term. For the sake of correctness, this post will refer to either aftermarket BOV, aftermarket BPV or OEM BPV as these are the most correct terms.

What is the function of a blow off valve (BOV)? To release pressure from the intake tract of a turbo car when the throttle closes. It is a vacuum-actuated valve designed to releases the air to the atmosphere.

What is the function of a bypass valve (BPV)? To release pressure from the intake tract of a turbo car when the throttle closes. It is a vacuum-actuated valve designed to recirculate the air back into the intake before the turbo inlet, but after the airflow sensor.

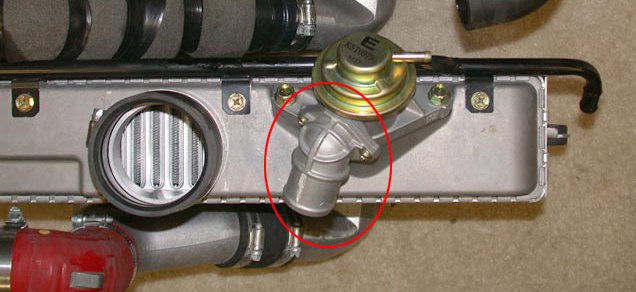

A stock Subaru BPV (not a BOV).
A stock Subaru BPV (not a BOV).

What is the purpose of a BOV/BPV? When the throttle closes and the intake system is under pressure, the high-pressure air entering the motor will bump into the closed throttle plate, and in the absence of a BOV/BPV, a pressure wave will travel back to the turbocharger. The result is that the compressor wheel will stall (a phenomenon known as “compressor surge”) and slow down very quickly. This is hard on the bearings and decreases the turbo’s lifespan, but it also means the turbo will take longer to spin up the next time the throttle is opened.

Are aftermarket BOVs necessary with Subaru turbos? No. The OEM BPV is perfectly fine up to 20psi of boost. For applications using higher boost levels, an aftermarket BOV/BPV should be considered.

Can I mod my stock BPV to hold higher boost? Yes. I’ll be creating a post giving detailed instructions on how to do so.

Is the STi BPV better than the WRX BPV? No. They are the same. However, the JDM STi BPV will hold more boost as it is physically different than both the USDM STi BPV and the WRX BPV. The specific PSI rating of the JDM STi BPV is unknown, but users have reported it is good up to 25 PSI.

Is an aftermarket BPV better than the stock BPV? No. Unless you are considering an aftermarket BPV solely for the purposes of holding higher boost levels. An aftermarket unit should sound just like the OEM unit.
